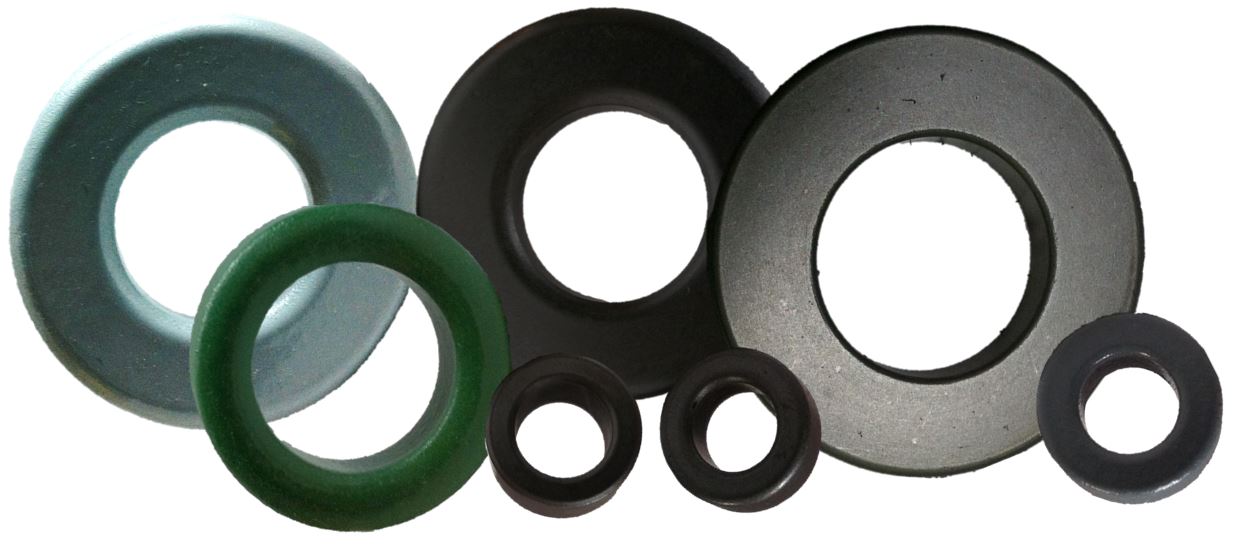

Ferrite Toroidal Cores

Displaying 1 to 126 (of 126 Products)

Part Number	A_L nH/N²	O.D. x I.D. x HT (in.)	Material	Initial Permeability	Alternate Part #	A_e (cm²)	L_e (cm)	Weight (g)	Qty.	Price
F-193-WC	12130	1.932 x 1.252 x 0.625	W	10000	ZW-44920-TC	1.190	12.30	74.60	6	$13.13
F-114-43	510	1.142 x 0.748 x 0.295	43	800	5943001001	0.370	7.30	13.00	420	$3.75
F-114-61	80	1.142 x 0.748 x 0.285	61	125	5961001001	0.370	7.30	13.00	3762	$2.81
F-114-67	25	1.142 x 0.748 x 0.295	67	40	5967001001	0.370	7.30	13.00	51	$4.38
F-114-F	1902	1.142 x 0.748 x 0.295	F	3000	0F-42908-TC	0.358	7.32	12.90	92	$2.81
F-114-J	3170	1.142 x 0.748 x 0.295	J	5000	0J-42908-TC	0.358	7.32	12.90	214	$2.81
F-114A-43	950	1.142 x 0.748 x 0.545	43	800	5977001201	0.680	7.30	26.00	5	$3.06
F-114A-61									205	$7.38
F-125-K	2615	1.250 x 0.900 x 0.500	K	250	F-125-K	0.590	7.60		6453	$5.00 $1.75 Save: 65% off
F-140-43	885	1.400 x 0.900 x 0.500	43	800	5943002701	0.790	8.90	33.00	105	$4.69
F-140A-F	4040	1.417 x 0.906 x 0.590	F	3000	0F-43615-TC	0.946	8.97	44.00	38	$5.63
F-140A-W	13400	1.417 x 0.906 x 0.590	W	10000	0W-43615-TC	0.946	8.97	44.00	13	$9.50
F-150-F	2640	1.500 x 0.750 x 0.250	F	3000	0F-43806-TC	0.570	8.30	26.40	78	$6.25
F-150-J	4400	1.500 x 0.750 x 0.250	J	5000	0J-43806-TC	0.570	8.30	26.40	10	$6.25
F-150A-F	5020	1.500 x 0.750 x 0.500	F	3000	0F-43813-TC	1.150	8.30	51.70	83	$9.38
F-150A-J	8365	1.500 x 0.750 x 0.500	J	5000	0J-43813-TC	1.150	8.30	51.70	684	$10.00
F-150A-K	4508	1.500 x 0.750 x 0.500	K	250	F-150A-K	1.110	8.30		40	$8.75
F-193-J	6065	1.932 x 1.252 x 0.625	J	5000	0J-44920-TC	1.190	12.30	74.60	53	$12.50
F-193A-F	4460	1.932 x 1.252 x 0.750	F	3000	0F-44925-TC	1.460	12.30	91.00	170	$10.50
F-193A-J	7435	1.932 x 1.252 x 0.750	J	5000	0J-44925-TC	1.460	12.30	91.00	273	$13.13
F-23-61	25	0.230 x 0.120 x 0.060	61	125	5961000101	0.020	1.30	0.14	1984	$0.63
F-23-67	6 Min	0.230 x 0.120 x 0.060	67	40	5967000101	0.020	1.30	0.14	2694	$0.63
F-23-F	585	0.230 x 0.120 x 0.060	F	3000	0F-40601-TC	0.021	1.30	0.14	404	$0.63
F-23-H	2940	0.230 x 0.120 x 0.060	H	15000	0H-40601-TC	0.021	1.30	0.14	9544	$0.63
F-23-WC	1960	0.230 x 0.120 x 0.060	W	10000	YW-40601-TC	0.021	1.30	0.14	210	$1.25
F-234-KC	400	2.340 x 1.370 x 0.504	K	250	F-234-KC				470	$17.44
F-240-W	13690	2.400 x 1.400 x 0.500	W	10000	0W-46113-TC	1.560	14.50	117.30	22	$31.25
F-37-43	350	0.375 x 0.187 x 0.125	43	800	5943000201	0.072	2.07	0.83	0	$0.75
F-37-61	55	0.375 x 0.187 x 0.125	61	125	5961000201	0.072	2.07	0.83	163	$0.75
F-37-67	18	0.375 x 0.187 x 0.125	67	40	5967000201	0.072	2.07	0.83	547	$0.75
F-37-68	5.3 Min	0.740 x 0.187 x 0.125	68	16	5968000201	0.073	2.07	0.83	290	$0.75
F-37-H	6590	0.375 x 0.187 x 0.125	H	15000	0H-41003-TC	0.070	2.07	0.82	136	$0.75
F-37-W	4392	0.375 x 0.187 x 0.125	W	10000	0W-41003-TC	0.070	2.07	0.82	0	$2.19
F-50-43	440	0.500 x 0.281 x 0.188	43	800	5943000301	0.129	2.95	2.00	1038	$0.94
F-50-61	69	0.500 x 0.281 x 0.188	61	125	5961000301	0.129	2.95	2.00	35	$0.94
F-50-67	22	0.500 x 0.281 x 0.188	67	40	5967000301	0.129	2.95	2.00	326	$0.94
F-50-68	6.6 Min	0.500 x 0.281 x 0.188	68	16	5968000301	0.129	2.95	2.00	960	$0.94
F-50-F	1630	0.500 x 0.281 x 0.188	F	3000	0F-41407-TC	0.126	2.95	1.90	526	$0.94
F-50-H	8140	0.500 x 0.281 x 0.188	H	15000	0H-41407-TC	0.126	2.95	1.90	245	$0.94
F-50-J	2715	0.500 x 0.281 x 0.188	J	5000	0J-41407-TC	0.126	2.95	1.90	272	$0.94
F-50-WC	5430	0.500 x 0.281 x 0.188	W	10000	ZW-41407-TC	0.126	2.95	1.90	350	$0.94
F-50A-43	480	0.500 x 0.312 x 0.250	43	800	5943001101	0.150	3.12	2.40	864	$1.06
F-50A-61	75	0.500 x 0.312 x 0.250	61	125	5961001101	0.150	3.12	2.40	7491	$1.06
F-50A-67	24	0.500 x 0.312 x 0.250	67	40	5967001101	0.150	3.12	2.40	509	$1.06
F-50A-68	7.2 Min	0.500 x 0.311 x 0.250	68	16	5968000301	0.150	3.12	2.40	180	$1.88
F-50A-77	1200	0.500 x 0.312 x 0.250	77	2000	5977001101	0.150	3.12	2.40	2184	$1.06
F-50A-J	2968	0.500 x 0.312 x 0.250	J	5000	0J-41306-TC	0.146	3.12	2.40	500	$1.06
F-50A-W	5936	0.500 x 0.312 x 0.250	W	10000	0W-41306-TC	0.146	3.12	2.40	17	$1.25
F-50B-43	965	0.500 x 0.312 x 0.250	43	800	5943001901	0.299	3.12	4.70	965	$1.19
F-50B-61	150	0.500 x 0.312 x 0.250	61	125	5961001901	0.299	3.12	4.70	45	$1.19
F-50B-67	48	0.500 x 0.312 x 0.500	67	40	5967001901	0.299	3.12	4.70	219	$1.19
F-50B-75	6000	0.500 x 0.312 x 0.500	75	5000	5975001901	0.299	3.12	4.70	159	$1.19
F-50B-77	2400	0.500 x 0.312 x 0.500	77	2000	5977001901	0.299	3.12	4.70	785	$1.19
F-82-43	470	0.825 x 0.520 x 0.468	43	800	5943000601	0.243	5.20	6.40	8627	$1.50
F-82-61	75	0.825 x 0.520 x 0.250	61	125	5961000601	0.243	5.20	6.40	1748	$1.50
F-82-67	22.4	0.825 x 0.516 x 0.250	67	40	5967000601	0.243	5.20	6.40	1174	$1.50
F-82-75	2950	0.825 x 0.520 x 0.250	75	5000	5975000601	0.243	5.20	6.40	23	$1.50
F-82-77	1175	0.825 x 0.520 x 0.250	77	2000	5977000601	0.243	5.20	6.40	1630	$1.50
F-87-43	485	0.870 x 0.540 x 0.250	43	800	5943001801	0.262	5.40	7.20	1008	$1.88
F-87-77	1400	0.870 x 0.540 x 0.250	77	2000	5977001801	0.262	5.40	7.20	4759	$1.88
F-87-H	9060	0.870 x 0.540 x 0.250	H	15000	0H-42206-TC	0.250	5.42	6.40	788	$2.19
F-87-J	3020	0.870 x 0.540 x 0.250	J	5000	0J-42206-TC	0.250	5.42	6.40	441	$1.50
F-87-W	6040	0.870 x 0.540 x 0.250	W	10000	0W-42206-TC	0.250	5.42	6.40	33	$1.50
F-87A-H	18100	0.870 x 0.540 x 0.500	H	15000	0H-42212-TC	0.511	5.42	13.50	375	$2.50
F-87A-J	6040	0.870 x 0.540 x 0.500	J	5000	0J-42212-TC	0.511	5.42	13.50	24	$2.50
F-23-43	158	0.230 x 0.120 x 0.060	43	800	5943000101	0.020	1.30	0.14	1417	$0.63
F-23-77	390	0.230 x 0.120 x 0.060	77	2000	5977000101	0.020	1.30	0.14	930	$0.63
F-50A-HC	8840	0.500 x 0.317 x 0.250	H	15000	ZH-41306-TC	0.146	3.12	2.40	1440	$2.81
F-114-JC	3170	1.142 x 0.748 x 0.295	J	5000	ZJ-42908-TC	0.358	7.32	12.90	122	$3.44
F-100-JC	3913	1.000 x 0.610 x 0.312	J	5000	ZJ-42507-TC	0.374	6.17	11.60	309	$1.31
F-114-43C	510	1.187 x 0.708 x 0.325	43	800	5943001021	0.370	7.30	13.00	0	$3.06
F-125-61C	120	1.299 x 0.729 x 0.405	61	125	5961001721	0.590	7.60	23.00	88	$12.50
F-125-67	39	1.250 x 0.750 x 0.375	67	40	5967001701	0.590	7.60	23.00	15	$3.75
F-140A-FC	4040	1.417 x 0.906 x 0.590	F	3000	ZF-43615-TC	0.946	8.97	44.00	85	$5.63
F-150A-FC	5020	1.500 x 0.750 x 0.500	F	3000	ZF-43813-TC	1.150	8.30	51.70	6	$10.63
F-150A-JC	8365	1.500 x 0.750 x 0.500	J	5000	ZJ-43813-TC	1.150	8.30	51.70	856	$11.25
F-150A-WC	16700	1.500 x 0.750 x 0.500	W	10000	ZW-43813-TC	1.150	8.30	51.70	966	$11.25
F-200-K			K	250	F-200-K				9	$14.38
F-23-75	785	0.230 x 0.120 x 0.060	75	5000	5975000101	0.020	1.30	0.14	261	$0.63
F-240-43C	1075	2.472 x 1.347 x 0.539	43	800	5943003821	1.580	14.50	106.00	43	$16.25
F-240-JC	6845	2.400 x 1.400 x 0.500	J	5000	ZJ-46113-TC	1.560	14.50	117.30	660	$15.00
F-240-WC	13690	2.400 x 1.400 x 0.500	W	10000	ZW-46113-TC	1.560	14.50	117.30	207	$37.50
F-290-JC	8140	2.900 x 1.530 x 0.500	J	5000	ZJ-47313-TC	2.120	1.65	177.00	42	$50.00
F-37-JC	2196	0.375 x 0.187 x 0.125	J	5000	ZJ-41003-TC	0.070	2.07	0.82	14	$2.50
F-50-43C	440	0.529 x 0.254 x 0.213	43	800	5943000321	0.129	2.95	2.00	346	$1.19
F-50-75	2725	0.500 x 0.281 x 0.188	75	5000	5975000301	0.129	2.95	2.00	463	$0.94
F-50-75C	2725	0.500 x 0.281 x 0.188	75	5000	5975000301C	0.129	2.95	2.00	371	$1.25
F-50-77	1180	0.500 x 0.281 x 0.188	77	2000	5977000301	0.129	2.95	2.00	224	$0.94
F-50-77C	1180	0.529 x 0.254 x 0.212	77	2000	5977000321	0.129	2.95	2.00	270	$1.06
F-50-W	5430	0.500 x 0.281 x 0.188	W	10000	0W-41407-TC	0.126	2.95	1.90	79	$0.94
F-50A-43C	480	0.500 x 0.312 x 0.250	43	800		0.150	3.12	2.40	2492	$1.06
F-50A-63			63		5963001101				11	$1.06
F-50A-75	3000	0.500 x 0.312 x 0.250	75	5000	5975001101	0.150	3.12	2.40	10	$1.06
F-50A-77C	1300	0.529 x 0.284 x 0.279	77	2000	5977001121	0.150	3.12	2.40	3303	$1.19
F-50A-FC	1782	0.500 x 0.312 x 0.250	F	3000	ZF-41306-TC	0.146	3.12	2.40	1451	$1.19
F-62-WC	5520	0.625 x 0.350 x 0.185	W	10000	ZW-41605-TC	0.153	3.68	2.80	86	$1.50
F-80-JC	4200	0.810 x 0.500 x 0.350	J	5000	ZJ-42109TC	0.326	5.00	8.10	16	$2.31
F-80-WC	8400	0.810 x 0.500 x 0.350	W	10000	ZW-42109-TC	0.326	5.00	8.10	19	$3.75
F-87A-JC	6040	0.870 x 0.540 x 0.500	J	5000	ZJ-42212-TC	0.511	5.42	13.50	945	$2.50
F-87-WC	6040	0.870 x 0.540 x 0.250	W	10000	ZW-42206-TC	0.250	5.42	6.40	326	$1.88
F-87-77C	1305	0.905 x 0.508 x 0.279	77	2000	5977001821	0.262	5.40	7.20	2909	$1.50
F-82-77C	1270	0.860 x 0.489 x 0.279	77	2000	5977000621	0.243	5.20	6.40	202	$2.50
F-150A-KC	4508	1.500 x 0.750 x 0.500	K	250	F-150A-KC	1.110	8.30		1325	$10.00
ZW-42507-TC	7825	1.000 x 0.608 x 0.302	W	10000	ZW-42507-TC	0.374	6.15	11.60	22	$1.91
ZW-44916-TC	11800	1.932 x 1.332 x 0.625	W	10000	ZW-44916-TC	1.200	12.70	75.30	795	$10.63
ZJ-42207-TC	3700	0.870 x 0.540 x 0.312	J	5000	ZJ-42207-TC	0.325	5.42	8.50	42	$1.73
ZP-41306-TC	1485	0.500 x 0.320 x 0.250	P	2500	ZP-41306-TC	0.142	3.17	2.40	448	$1.20
ZP-47313-TC	4024	2.900 x 1.530 x 0.500	P	2500	ZP-47313-TC	2.100	16.50	172.00	114	$22.50
ZF-41005-TC	1980	0.375 x 0.187 x 0.188	F	3000	ZF-41005-TC	0.109	2.07	1.20	23	$1.20
ZF-41406-TC	2166	0.500 x 0.312 x 0.250	F	3000	ZF-41406-TC	0.171	2.95	2.70	202	$1.13
ZF-41303-TC	894	0.500 x 0.320 x 0.125	F	3000	ZF-41303-TC	0.071	3.17	1.20	2230	$0.68
ZJ-41305-TC	2380	0.500 x 0.320 x 0.200	J	5000	ZJ-41305-TC	0.114	3.17	1.90	188	$1.09
YW-40402-TC	3800	0.190 x 0.090 x 0.100	W	10000	YW-40402-TC	0.031	1.02	0.17	206	$0.49
YW-40705-TC	8350	0.300 x 0.125 x 0.188	W	10000	YW-40705-TC	0.099	1.50	0.90	725	$0.68
VJ-42206-TC	3020	0.870 x 0.540 x 0.250	J	5000	VJ-42206-TC	0.262	5.41	6.40	116	$0.94
ZF-40907-TC	2260	0.375 x 0.220 x 0.280	F	3000	ZF-40907-TC	0.137	2.27	1.60	93	$3.19
ZJ-41809-TC	6115	0.726 x 0.384 x 0.404	J	5000	ZJ-41809-TC	0.431	4.14	9.90	95	$2.81
ZW-41406-TC	7224	0.500 x 0.281 x 0.250	W	10000	ZW-41406-TC	0.171	2.95	2.70	1303	$1.50
ZW-46113-TC	13690	2.400 x 1.400 x 0.500	W	10000	ZW-46113-TC	1.574	14.46	113.00	34	$24.86
ZW-48613-TC	11040	3.375 x 2.187 x 0.500	W	10000	ZW-48613-TC	1.888	21.50	203.00	25	$36.75
ZJ-41206-TC	5640	0.500 x 0.203 x 0.250	J	5000	ZJ-41206-TC	0.220	2.50	3.30	46
ZP-41406-TC	1805	0.500 x 0.281 x 0.250	P	2500	ZP-41406-TC	0.171	2.95	2.70	500
ZP-42106-TC	1500	0.811 x 0.500 x0.250	P	2500	ZP-42106-TC	0.246	5.03	5.40	48	$1.20
F-394-J1	11500	3.940 x 2.160 x 0.790	J1	5000	CF265 T10020	4.368	22.96	520	10
F-590-J1	5700	5.964 x 4.094 x 0.590	J1	5000	CF265 T15215	3.557	39.26		10
F-795-J1	6700	6.023 x 6.142 x 5.906	J1	5000	CF265 T20225	6.086	55.05	160.00	10

Displaying 1 to 126 (of 126 Products)
