Home ↔ Products ↔ Nanocrystalline Cores

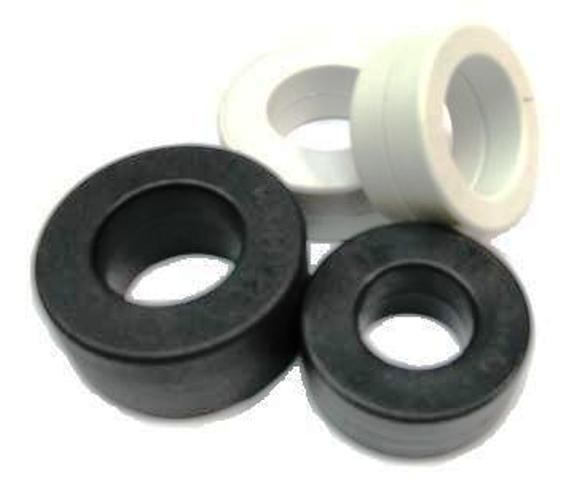

Nanocrystalline Cores

Displaying 1 to 40 (of 40 Products)

Part Number	Material	A_L(nH/N²) @ 10 Khz	Case Dimension O.D. x I.D. x HT (mm)	Permeability @ 10 Khz	A_e (cm²)	L_e (cm)	Weight (g)	Saturation Current @ 10 kHz (mA)	Qty.	Price
CN100-80-20G	Nanocrystalline	30000	104.0 x 76.0 x 24.0	43000	2.00	28.30	320.00	80	1	$55.80
CN20-12-08G	Nanocrystalline	65000	23.0 x 10.0 x 10.0	70000	0.32	5.00	11.00	10	413	$2.51
CN25-20-10G	Nanocrystalline	24000	28.0 x 17.0 x 13.0	60000	0.25	7.10	10.40	15	47	$1.95
CN32-20-15G	Nanocrystalline	68000	35.0 x 18.0 x 19.0	46000	0.90	8.20	44.00	20	4	$8.25
CN40-25-15G	Nanocrystalline	97000	43.0 x 23.0 x 19.0	70000	1.13	10.20	64.20	30	49	$11.18
CN40-32-15G	Nanocrystalline	52000	43.0 x 29.0 x 19.0	70000	0.60	11.30	37.90	30	26	$7.24
CN50-40-20G	Nanocrystalline	48000	54.0 x 36.0 x 23.0	50000	1.00	14.10	79.00	30	5	$14.25
CN80-50-20G	Nanocrystalline	72000	86.0 x 45.0 x 26.0	50000	3.00	20.40	342.00	50	207	$60.75
CN90-60-20G	Nanocrystalline	61000	95.0 x 56.0 x 25.0	50000	3.00	23.60	395.00	50	5	$69.56
CN32-20-10G	Nanocrystalline	41000	34.0 x 18.0 x 13.0	80000	0.60	8.20	28.00	10	0	$5.48
CN50-32-15G	Nanocrystalline	97000	54.0 x 29.0 x 19.0	50000	1.35	12.90	98.00	30	8	$17.40
CN65-50-25G	Nanocrystalline	83000	69.0 x 45.0 x 29.0	40000	1.88	18.10	190.00	45	0	$15.94
CN120-80-30G	Nanocrystalline	70000	125.0 x 75.0 x 36.0	35000	6.00	31.40	1060.00	100	10	$102.50
CN50-40-25G	Nanocrystalline	68000	55.0 x 35.0 x 30.0	35000	1.25	14.10	83.00	40	1722	$15.94
CN53-38-20G	Nanocrystalline	67000	56.0 x 35.0 x 24.0	35000	1.50	14.30	82.00	40	209	$14.25
ACC18-11-10	Amorphous		20 x 9 x 12	35000	0.35	4.5	11.50		878
ACC64-40-20	Amorphous		69 x 37 x 24	35000	2.40	16.3	240.67		100
ACC50-32-20	Amorphous		53 x 29 x 24	35000	1.80	12.8	138.70		183
ACC36-24-30	Amorphous		39 x 22 x 42	35000	1.80	9.4	104.00		49
CN50-30-20	Nanocrystalline	76400	50.0 x 30.0 x 20.0	50000	1.35	12.90	170.10	30	19	$6.00
CN100-60-25G	Nanocrystalline	129260	3.37 x 1.00 x 1.77				414.00		5	$54.55
CN70-35-50G	Nanocrystalline	152000	70.5 x 35.0 x 50	90000	4.64	15.50	366.00	50	45	$24.56
CN80-63-30G	Nanocrystalline	36150	85.0 x 57.0 x 35.5	30000	1.86	22.36	295.00	50	53	$24.55
CN100-80-30G	Nanocrystalline	33750	105.0 x 75.0 x 35.0	30000	2.25	28.16	351.53	60	5
CN50-40-20H	Nanocrystalline	20500	60.7 x 42.7 x 22.3	30000	0.80	14.10	82.21	30	43	$13.00
CN200-175-30G	Nanocrystalline	18465	208.0 x 166.0 x 37.0	30000	2.74	58.82	1395.00	130	12	$79.09
CN160-130-30G	Nanocrystalline	56500	165.0 x 123.0 x 34.0	60000	3.24	45.39	950.00	96	2	$73.09
CN30-20-10G	Nanocrystalline	50000	32.9 x 17.7 x 12.6	90000	0.38	7.75	25.51	20	6	$2.26
CN80-63-30H	Nanocrystalline	36150	101.0 x 68.0 x 37.0	30000	1.86	22.36	386.00	50	3	$62.50
CN100-80-30F	Nanocrystalline	63350	105.0 x 75.0 x 35.0	60000	2.25	28.16	351.53	60	17	$35.45
CN160-130-30H	Nanocrystalline	27950	197.0 x 155.0 x 36.0	30000	3.30	44.70	1134.00	100	23	$75.00
CN160-130-30F	Nanocrystalline	27950	165.0 x 123.0 x 34.0	30000	3.24	45.39	950.00	100	3	$73.09
CN25-20-10F	Nanocrystalline	31900	27.6 x 17.8 x 12.5	90000	0.20	7.10	17.00	15	271	$3.19
CN80-60-30F	Nanocrystalline	64600	80.0 x 60.0 x 30.0	60000	2.93	2.22	374.00	50	12	$27.28
AMFN504020SA	Nanocrystalline	36100	50.013 x 40.005 x 33.600	23000	0.750	14.13	77.40		100
AMFN251610SV-1	Nanocrystalline		89.992 x 59.995 x 19.200	23000	23.55	2.250	386.8		62
CN20-12.8-8E									860	Min: 0 Units: 0
CN28-13.8-18.2									1005	Min: 0 Units: 0
CN53-37-34									0	Min: 0 Units: 0
CWS-504020SA-3P									205	Min: 0 Units: 0

Displaying 1 to 40 (of 40 Products)
