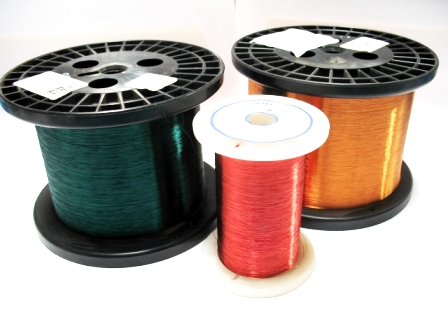

Magnet and Litz Wire

AWG and Litz series

AL (nH/Square Turn or nH/N2) is the AL value.
L is inductance in nH (nanohenries)
N is the number of turns of a wire
Required turns (N) = square root of (desired 'L' /'AL'), √'L' /'AL', or 1000 turns='mH' /'AL', (square rooted)
CWS ByteMark Part Number is the part number to use to place purchase order. 1 inch = 25.4 mm
Wire color, spool and packaging may vary upon available assorted stock. Please contact us if you cannot find what you are looking for, we may carry some inventory.

Need help with your toroid design ? Please visit: www.coilws.com



Low order fees are charged to total a minimum payment of $25.
Quantity marked in red is subject to availability and prior sales, or back order.
Please call for volume and price inquiries or email sales@cwsbytemark.com

Typical Part Number : [Type]A/B

For AWG solid wires and similar:

Ex: AWG18 1/4 LBS where Type is AWG# = American Wire Gauge and 1/4 LBS is the weight it is sold at.


There are no products to list in this category.
